QAAPX13A207SET QM

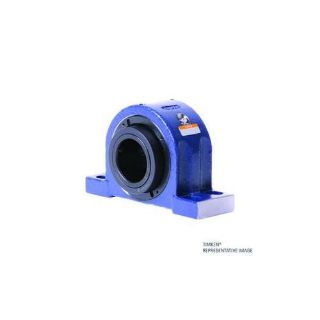

Picture of QAAPX13A207SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPX13A207SET
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,306.82 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPX13A207SET, Pillow Block, Series: QAAPX, 2.4375 in Bore, 6.94 to 9.56 in Bolt Center-to-Center Length, 3.0 in Base to Bore Centerline, 11.25 in Overall Length, 4.09 in Overall Width, 6.05 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.88 in Base Width, Double Concentric Collar Locking Device, T Seal, Expansion, 206000 N Dynamic/216000 N Static Load, -100 to 500 deg F, 2800 rpm Grease/3200 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:3.0 in
Base Width:3.88 in
Bolt Center-to-Center Length:6.94 to 9.56 in
Bore Diameter:2.4375 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:206000 N Dynamic/216000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:2800 rpm Grease/3200 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.05 in
Overall Length:11.25 in
Overall Width:4.09 in
Seal Type:T Seal
Series:QAAPX
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
2 7/16 in
Type
4 Bolt Pillow Block
