QAAPX13A207ST QM

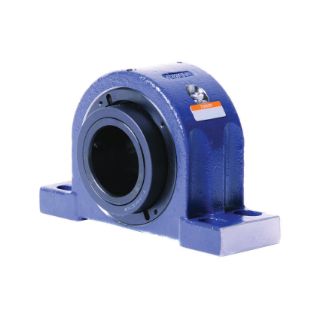

Picture of QAAPX13A207ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPX13A207ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,306.82 / EA

Description

Brand Name

Timken®

Type

Solid Block

Description

Timken®, QAAPX13A207ST, Spherical Roller Bearing Housed Unit, Solid Block, Series: CL Series, 2-7/16 in Bore, 6.94 to 9.56 in Bolt Center-to-Center Length, 3 in Base to Bore Centerline, 11-1/4 in Overall Length, 4.09 in Overall Width, 6.05 in Overall Height, Four-Bolt Base Mounting, Cylindrical Bore, 3.88 in Base Width, Double Concentric Collar Locking Device, T Seal, Non-Expansion (Fixed), 46400 lb Dynamic/48600 lb Static Load, 2800 rpm Grease/3200 rpm Oil Maximum, Cast Steel

Application

For use with 2-7/16 in shaft diameter

Specifications

Base to Bore Centerline:3 in
Base Width:3.88 in
Bolt Center-to-Center Length:6.94 to 9.56 in
Bore Diameter:2-7/16 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Load Capacity:46400 lb Dynamic/48600 lb Static
Locking Device:Double Concentric Collar
Material:Cast Steel
Maximum Speed:2800 rpm Grease/3200 rpm Oil
Mounting Type:Four-Bolt Base
Overall Height:6.05 in
Overall Length:11-1/4 in
Overall Width:4.09 in
Seal Type:T Seal
Series:CL Series

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
2 7/16 in
Type
4 Bolt Pillow Block
