QAAPX15A211SB QM

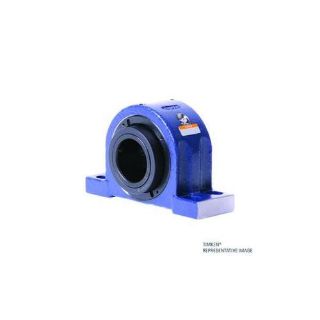

Picture of QAAPX15A211SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPX15A211SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,019.19 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPX15A211SB, Pillow Block, Series: QAAPX, 2.6875 in Bore, 9.06 to 10.44 in Bolt Center-to-Center Length, 3.5 in Base to Bore Centerline, 13 in Overall Length, 4.5 in Overall Width, 6.83 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.25 in Base Width, Double Concentric Collar Locking Device, B Seal, Fixed Expansion, 222000 N Dynamic/240000 N Static Load, -50 to 200 deg F, 1300 rpm Grease/1300 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:3.5 in
Base Width:4.25 in
Bolt Center-to-Center Length:9.06 to 10.44 in
Bore Diameter:2.6875 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:222000 N Dynamic/240000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.83 in
Overall Length:13 in
Overall Width:4.5 in
Seal Type:B Seal
Series:QAAPX
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
2 11/16 in
Type
4 Bolt Pillow Block
