QAAPX18A308SEM QM

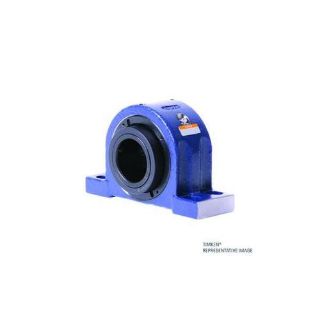

Picture of QAAPX18A308SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPX18A308SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,029.21 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPX18A308SEM, Pillow Block, Series: QAAPX, 3.5 in Bore, 10.81 to 12.19 in Bolt Center-to-Center Length, 4.0 in Base to Bore Centerline, 15 in Overall Length, 4.97 in Overall Width, 7.92 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.75 in Base Width, Double Concentric Collar Locking Device, M Seal, Expansion, 355000 N Dynamic/388000 N Static Load, -50 to 200 deg F, 1400 rpm Grease/1400 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:4.0 in
Base Width:4.75 in
Bolt Center-to-Center Length:10.81 to 12.19 in
Bore Diameter:3.5 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:355000 N Dynamic/388000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:1400 rpm Grease/1400 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.92 in
Overall Length:15 in
Overall Width:4.97 in
Seal Type:M Seal
Series:QAAPX
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
3 1/2 in
Type
4 Bolt Pillow Block
