QAAPX20A400SN QM

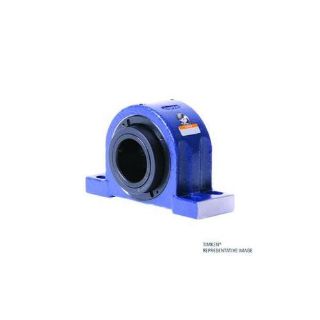

Picture of QAAPX20A400SN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPX20A400SN
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,801.92 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPX20A400SN, Pillow Block, Series: QAAPX, 4 in Bore, 12.5 to 14 in Bolt Center-to-Center Length, 5.0 in Base to Bore Centerline, 16.75 in Overall Length, 5.71 in Overall Width, 9.44 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 5.5 in Base Width, Double Concentric Collar Locking Device, N Seal, Fixed Expansion, 435000 N Dynamic/502000 N Static Load, -30 to 400 deg F, 1200 rpm Grease/1200 rpm Oil Maximum, Steel, Painted

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Base to Bore Centerline:5.0 in
Base Width:5.5 in
Bolt Center-to-Center Length:12.5 to 14 in
Bore Diameter:4 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:1200 rpm Grease/1200 rpm Oil
Mounting Type:4-Bolt
Overall Height:9.44 in
Overall Length:16.75 in
Overall Width:5.71 in
Seal Type:N Seal
Series:QAAPX
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
4 in
Type
4 Bolt Pillow Block
