QAASN20A315SM QM

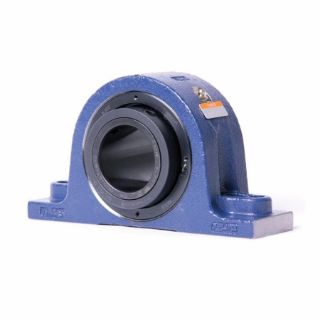

Picture of QAASN20A315SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAASN20A315SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,596.57 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non Expansion M Seal Solid Block

Description

Available in double-collar (QAA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken® Spherical Roller Bearing Housed Unit, Non Expansion M Seal Solid Block, Series: CL Series, 3-15/16 in Bore, 12.56 to 14.41 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 16.14 in Overall Length/Diameter, 5.91 in Overall Depth, 9.49 in Overall Height, Double Concentric Locking Device, Cast Steel Seal, 97700 lb Dynamic/113000 lb Static Load, 1200 rpm Grease/1200 rpm Oil Maximum

Application

For use with 3-15/16 in shaft diameter

Specifications

Bolt Center-to-Center Length:12.56 to 14.41 in
Bore Diameter:3-15/16 in
Flange Mounting Type:2-Bolt Base
Load Capacity:97700 lb Dynamic/113000 lb Static
Locking Device:Double Concentric
Maximum Speed:1200 rpm Grease/1200 rpm Oil
Overall Depth:5.91 in
Overall Height:9.49 in
Overall Length/Diameter:16.14 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
2 Bolt Pillow Block
