QAC15A075SET QM

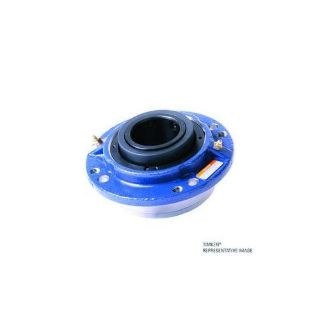

Picture of QAC15A075SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAC15A075SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,719.63 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAC15A075SET, Piloted Flange Cartridge, Single Concentric, Series: QAC, 2.9528 in Bore, 5.3 in Bolt Center-to-Center Length, 7.5 in Diameter Bolt Circle, Piloted Flange Mounting, 8.75| in Overall Length/Diameter, 3.62 in Overall Depth, Single Concentric Locking Device, Steel Bearing, Teflon Seal, 222000 N Dynamic/240000 N Static Load, 2400 rpm Grease/2900 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.3 in
Bolt Circle Diameter:7.5 in
Bore Diameter:2.9528 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:222000 N Dynamic/240000 N Static
Locking Device:Single Concentric
Maximum Speed:2400 rpm Grease/2900 rpm Oil
Overall Depth:3.62 in
Overall Length/Diameter:8.75 in
Seal Material:Teflon
Series:QAC
Temperature Rating:-100 to 500 deg F
