QACW10A115SET QM

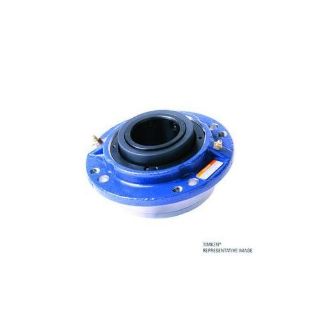

Picture of QACW10A115SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QACW10A115SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$962.37 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QACW10A115SET, Piloted Flange Cartridge, Single Concentric, Series: QACW, 1.9375 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, Piloted Flange Mounting, 6.38| in Overall Length/Diameter, 2.87 in Overall Depth, Single Concentric Locking Device, Steel Bearing, Teflon Seal, 117000 N Dynamic/118000 N Static Load, 3550 rpm Grease/4200 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3.8 in
Bolt Circle Diameter:5.38 in
Bore Diameter:1.9375 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:117000 N Dynamic/118000 N Static
Locking Device:Single Concentric
Maximum Speed:3550 rpm Grease/4200 rpm Oil
Overall Depth:2.87 in
Overall Length/Diameter:6.38 in
Seal Material:Teflon
Series:QACW
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
