QACW11A055ST QM

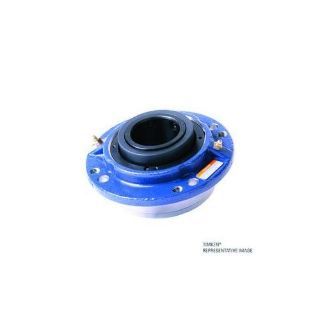

Picture of QACW11A055ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QACW11A055ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,070.85 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QACW11A055ST, Piloted Flange Cartridge, Single Concentric, Series: QACW, 2.1654 in Bore, 4.24 in Bolt Center-to-Center Length, 6 in Diameter Bolt Circle, Piloted Flange Mounting, 7.13| in Overall Length/Diameter, 3.13 in Overall Depth, Single Concentric Locking Device, Steel Bearing, Teflon Seal, 140000 N Dynamic/142000 N Static Load, 3200 rpm Grease/3800 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.24 in
Bolt Circle Diameter:6 in
Bore Diameter:2.1654 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Single Concentric
Maximum Speed:3200 rpm Grease/3800 rpm Oil
Overall Depth:3.13 in
Overall Length/Diameter:7.13 in
Seal Material:Teflon
Series:QACW
Temperature Rating:-100 to 500 deg F
