QACW18A307SM QM

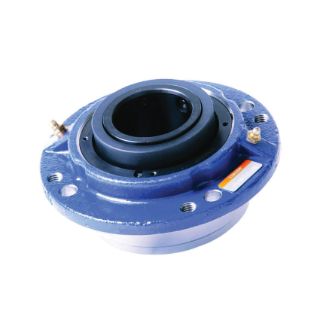

Picture of QACW18A307SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QACW18A307SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,718.95 / EA

Description

Brand Name

Timken®

Type

Non-Expansion M Seal Solid Block

Description

Available in single-collar (QA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QACW18A307SM, Spherical Roller Bearing Housed Unit, Non-Expansion M Seal Solid Block, Series: CL Series, 3-7/16 in Bore, 6.1 in Bolt Center-to-Center Length, 8.63 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 10-1/4 in Overall Length/Diameter, 4.17 in Overall Depth, 10-1/4 in Overall Height, Single Concentric Collar Locking Device, Cast Steel Seal, 79700 lb Dynamic/87200 lb Static Load, 1400 rpm Grease/Oil Maximum

Application

For use with 3-7/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.1 in
Bolt Circle Diameter:8.63 in
Bore Diameter:3-7/16 in
Flange Mounting Type:4-Bolt Piloted
Load Capacity:79700 lb Dynamic/87200 lb Static
Locking Device:Single Concentric Collar
Maximum Speed:1400 rpm Grease/Oil
Overall Depth:4.17 in
Overall Height:10-1/4 in
Overall Length/Diameter:10-1/4 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
