QAF10A200SM QM

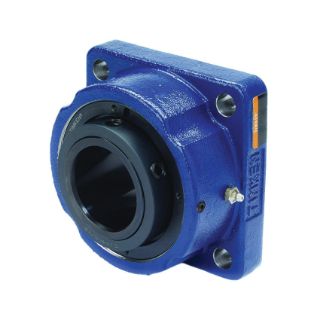

Picture of QAF10A200SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAF10A200SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$829.56 / EA

Description

Brand Name

Timken®

Type

Non-Expansion M Seal Solid Block

Description

Available in single-collar (QA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QAF10A200SM, Spherical Roller Bearing Housed Unit, Non-Expansion M Seal Solid Block, Series: CL Series, 2 in Bore, 4.38 in Bolt Center-to-Center Length, 6.19 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5-1/2 in Overall Length/Diameter, 3.18 in Overall Depth, 5-1/2 in Overall Height, Single Concentric Collar Locking Device, Cast Steel Seal, 26300 lb Dynamic/26600 lb Static Load, 2400 rpm Grease/Oil Maximum

Application

For use with 2 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.38 in
Bolt Circle Diameter:6.19 in
Bore Diameter:2 in
Flange Mounting Type:4-Bolt Square
Load Capacity:26300 lb Dynamic/26600 lb Static
Locking Device:Single Concentric Collar
Maximum Speed:2400 rpm Grease/Oil
Overall Depth:3.18 in
Overall Height:5-1/2 in
Overall Length/Diameter:5-1/2 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 in
