QAF18A307SEN QM

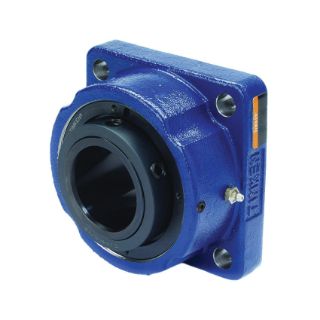

Picture of QAF18A307SEN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAF18A307SEN
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,682.72 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Expansion N Seal Solid Block

Description

Available in single-collar (QA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QAF18A307SEN, Spherical Roller Bearing Housed Unit, Expansion N Seal Solid Block, Series: CL Series, 3-7/16 in Bore, 7 in Bolt Center-to-Center Length, 9.91 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.63 in Overall Length/Diameter, 4.3 in Overall Depth, 8.63 in Overall Height, Single Concentric Collar Locking Device, Cast Steel Seal, 79700 lb Dynamic/87200 lb Static Load, 1400 rpm Grease/Oil Maximum

Application

For use with 3-7/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:7 in
Bolt Circle Diameter:9.91 in
Bore Diameter:3-7/16 in
Flange Mounting Type:4-Bolt Square
Load Capacity:79700 lb Dynamic/87200 lb Static
Locking Device:Single Concentric Collar
Maximum Speed:1400 rpm Grease/Oil
Overall Depth:4.3 in
Overall Height:8.63 in
Overall Length/Diameter:8.63 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3 7/16 in
