QAFL15A211SEM QM

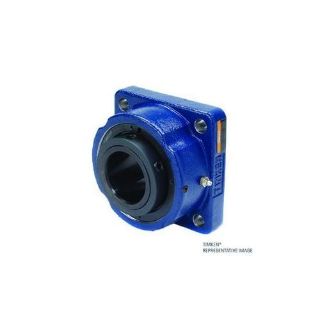

Picture of QAFL15A211SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAFL15A211SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,616.10 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Four-Bolt

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAFL15A211SEM, Square Flange Block, Four-Bolt, Series: QAFL, 2.6875 in Bore, 5.56 in Bolt Center-to-Center Length, 7.88 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.19 in Overall Length/Diameter, 3.62 in Overall Depth, 7.19 in Overall Height, Single Concentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 222000 N Dynamic/240000 N Static Load, 1600 rpm Grease/1600 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.56 in
Bolt Circle Diameter:7.88 in
Bore Diameter:2.6875 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:222000 N Dynamic/240000 N Static
Locking Device:Single Concentric
Maximum Speed:1600 rpm Grease/1600 rpm Oil
Overall Depth:3.62 in
Overall Height:7.19 in
Overall Length/Diameter:7.19 in
Seal Material:Nitrile Rubber
Series:QAFL
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 11/16 in
