QAFY11A203SC QM

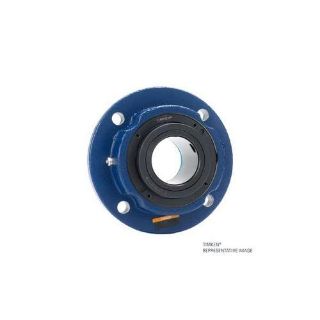

Picture of QAFY11A203SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAFY11A203SC
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,053.31 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAFY11A203SC, Round Flange Block, Series: QAFY, 2.1875 in Bore, 4.5 in Bolt Center-to-Center Length, 6.38 in Diameter Bolt Circle, Round Flange Flange Mounting, 7.75 in Overall Length/Diameter, 3.13 in Overall Depth, 7.75 in Overall Height, Set Screw Locking Device, Steel Bearing, Viton Seal, 140000 N Dynamic/142000 N Static Load, 1600 rpm Grease/1600 rpm Oil Maximum, -30 to 400 deg F, Painted

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.5 in
Bolt Circle Diameter:6.38 in
Bore Diameter:2.1875 in
Finish:Painted
Flange Mounting Type:Round Flange
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Set Screw
Maximum Speed:1600 rpm Grease/1600 rpm Oil
Overall Depth:3.13 in
Overall Height:7.75 in
Overall Length/Diameter:7.75 in
Seal Material:Viton
Series:QAFY
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 3/16 in
