QAFY13A207ST QM

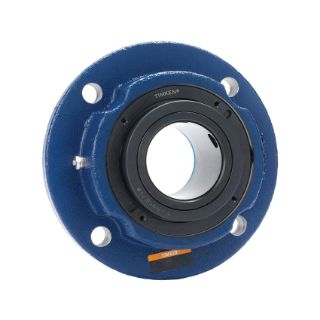

Picture of QAFY13A207ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAFY13A207ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,061.68 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non-Expansion T Seal Solid Block

Description

Available in single-collar (QA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QAFY13A207ST, Spherical Roller Bearing Housed Unit, Non-Expansion T Seal Solid Block, Series: CL Series, 2-7/16 in Bore, 4.77 in Bolt Center-to-Center Length, 6-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 8.13 in Overall Length/Diameter, 3.59 in Overall Depth, 8.13 in Overall Height, Single Concentric Collar Locking Device, Cast Steel Seal, 46400 lb Dynamic/48600 lb Static Load, 2800 rpm Grease/3200 rpm Oil Maximum

Application

For use with 2-7/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.77 in
Bolt Circle Diameter:6-3/4 in
Bore Diameter:2-7/16 in
Flange Mounting Type:4-Bolt Round
Load Capacity:46400 lb Dynamic/48600 lb Static
Locking Device:Single Concentric Collar
Maximum Speed:2800 rpm Grease/3200 rpm Oil
Overall Depth:3.59 in
Overall Height:8.13 in
Overall Length/Diameter:8.13 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 7/16 in
