QAFY18A308SM QM

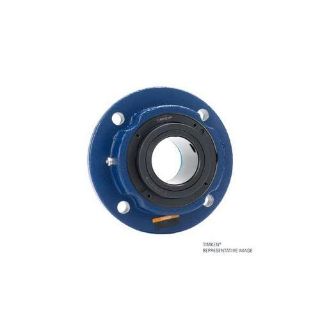

Picture of QAFY18A308SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAFY18A308SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,300.77 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAFY18A308SM, Round Flange Block, Series: QAFY, 3.5 in Bore, 6.7 in Bolt Center-to-Center Length, 9.5 in Diameter Bolt Circle, Round Flange Flange Mounting, 11.13 in Overall Length/Diameter, 4.03 in Overall Depth, 11.13 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 355000 N Dynamic/388000 N Static Load, 1400 rpm Grease/1400 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.7 in
Bolt Circle Diameter:9.5 in
Bore Diameter:3.5 in
Finish:Painted
Flange Mounting Type:Round Flange
Load Capacity:355000 N Dynamic/388000 N Static
Locking Device:Set Screw
Maximum Speed:1400 rpm Grease/1400 rpm Oil
Overall Depth:4.03 in
Overall Height:11.13 in
Overall Length/Diameter:11.13 in
Seal Material:Nitrile Rubber
Series:QAFY
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
