QAFY20A315SET QM

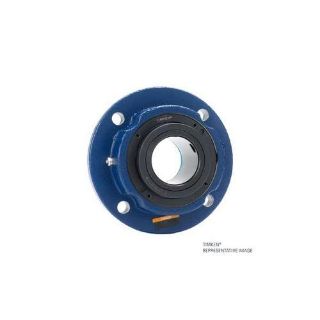

Picture of QAFY20A315SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAFY20A315SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,411.42 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAFY20A315SET, Round Flange Block, Series: QAFY, 3.9375 in Bore, 7.6 in Bolt Center-to-Center Length, 10.75 in Diameter Bolt Circle, Round Flange Flange Mounting, 12.63 in Overall Length/Diameter, 4.59 in Overall Depth, 12.63 in Overall Height, Set Screw Locking Device, Steel Bearing, Teflon Seal, 435000 N Dynamic/502000 N Static Load, 1600 rpm Grease/2000 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:7.6 in
Bolt Circle Diameter:10.75 in
Bore Diameter:3.9375 in
Finish:Painted
Flange Mounting Type:Round Flange
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Set Screw
Maximum Speed:1600 rpm Grease/2000 rpm Oil
Overall Depth:4.59 in
Overall Height:12.63 in
Overall Length/Diameter:12.63 in
Seal Material:Teflon
Series:QAFY
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3 15/16 in
