QAMC10A115SC QM

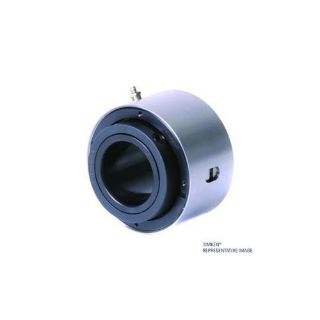

Picture of QAMC10A115SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAMC10A115SC
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$998.69 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAMC10A115SC, Cartridge Block, Single Concentric, Series: QAMC, 1-15/16 in Bore, 4.125 in OD, 2.87 in Width, 117000 N Dynamic/118000 N Static Load, Viton Seal, 1800 rpm Grease/1800 rpm Oil Maximum, -30 to 400 deg F, Machined Steel

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Bearing Material:Steel
Bore Diameter:1-15/16 in
Finish:Machined Steel
Load Capacity:117000 N Dynamic/118000 N Static
Maximum Speed:1800 rpm Grease/1800 rpm Oil
Outside Diameter:4.125 in
Seal Material:Viton
Series:QAMC
Temperature Rating:-30 to 400 deg F
Width:2.87 in

Products Specifications

Brand Name
Timken
Shaft Diameter
1 15/16 in
