QAMC11A203SM QM

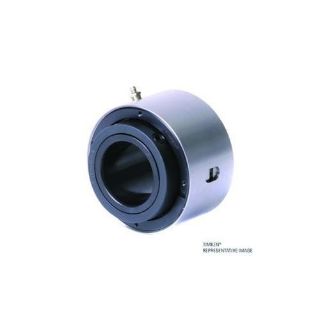

Picture of QAMC11A203SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAMC11A203SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,010.24 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAMC11A203SM, Cartridge Block, Single Concentric, Series: QAMC, 2-3/16 in Bore, 4.531 in OD, 3.13 in Width, 140000 N Dynamic/142000 N Static Load, Nitrile Rubber Seal, 2200 rpm Grease/2200 rpm Oil Maximum, -50 to 200 deg F, Machined Steel

Application

Offers superior sealing in moist and dirty applications

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bore Diameter:2-3/16 in
Finish:Machined Steel
Load Capacity:140000 N Dynamic/142000 N Static
Maximum Speed:2200 rpm Grease/2200 rpm Oil
Outside Diameter:4.531 in
Seal Material:Nitrile Rubber
Series:QAMC
Temperature Rating:-50 to 200 deg F
Width:3.13 in

Products Specifications

Brand Name
Timken
Shaft Diameter
2 3/16 in
