QAMC11A204SM QM

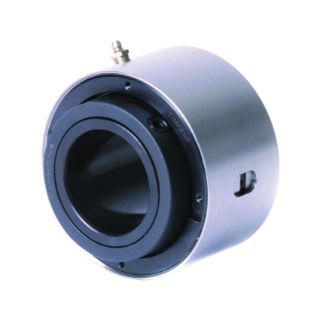

Picture of QAMC11A204SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAMC11A204SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,010.24 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Cylindrical Bore Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAMC11A204SM, Spherical Roller Bearing Cartridge Block, Cylindrical Bore Non-Expansion, Series: QAMC, 2-1/4 in Bore, 4.531 in OD, 3.13 in Width, 31400 lb Dynamic/31900 lb Static Load, Steel Bearing, Nitrile Rubber Seal, 2200 rpm Grease/Oil Maximum, 32 to 104 deg F, Powder Coated

Application

Aggregate and Cement, Agriculture, Material Conveying, Metal Mills, Mining, Power Generation Industries

Standards

ABMA/ANSI Standard

Features

  • Concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • M seal triple-lip contacting, self-purging nitrile rubber is excellent in moist and dirty applications and chemical and corrosion-resistant
  • Double row, heavy duty, open end and single collar
  • Cast steel housing
  • 22211 bearing insert bore series

Specifications

Bearing Material:Steel
Bore Diameter:2-1/4 in
Finish:Powder Coated
Load Capacity:31400 lb Dynamic/31900 lb Static
Maximum Speed:2200 rpm Grease/Oil
Outside Diameter:4.531 in
Seal Material:Nitrile Rubber
Series:QAMC
Temperature Rating:32 to 104 deg F
Width:3.13 in

Products Specifications

Brand Name
Timken
Shaft Diameter
2 1/4 in
