QAMC18A090ST QM

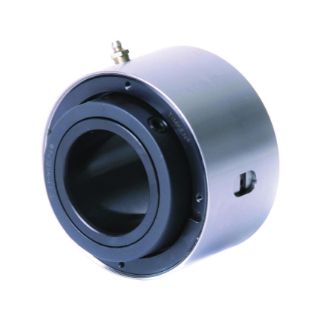

Picture of QAMC18A090ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAMC18A090ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,565.02 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Cylindrical Bore Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAMC18A090ST, Spherical Roller Bearing Cartridge Block, Cylindrical Bore Non-Expansion, Series: QAMC, 90 mm Bore, 171.45 mm OD, 110.2 mm Width, 79700 lb Dynamic/87200 lb Static Load, Steel Bearing, PTFE Seal, 2000 rpm Grease/2400 rpm Oil Maximum, 0 to 40 deg C, Powder Coated

Application

Aggregate and Cement, Agriculture, Material Conveying, Metal Mills, Mining, Power Generation Industries

Standards

ABMA/ANSI Standard

Features

  • Concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • Double row, heavy duty, open end and single collar
  • Cast steel housing
  • 22218 bearing insert bore series

Specifications

Bearing Material:Steel
Bore Diameter:90 mm
Finish:Powder Coated
Load Capacity:79700 lb Dynamic/87200 lb Static
Maximum Speed:2000 rpm Grease/2400 rpm Oil
Outside Diameter:171.45 mm
Seal Material:PTFE
Series:QAMC
Temperature Rating:0 to 40 deg C
Width:110.2 mm

Products Specifications

Brand Name
Timken
Shaft Diameter
90 mm
