QAP10A115SM QM

Picture of QAP10A115SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAP10A115SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$812.35 / EA

Description

Brand Name

Timken®

Type

Solid Block Type E

Description

Timken®, QAP10A115SM, Spherical Roller Bearing Housed Unit, Solid Block Type E, Series: CL Series, 1-15/16 in Bore, 6 to 7.13 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8.88 in Overall Length, 3.11 in Overall Width, 4.81 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.44 in Base Width, Single Concentric Collar Locking Device, M Seal, Non-Expansion (Fixed), 26300 lb Dynamic/26600 lb Static Load, 2400 rpm Grease/Oil Maximum, Cast Steel

Application

For use with 1-15/16 in shaft diameter

Specifications

Base to Bore Centerline:2-1/4 in
Base Width:2.44 in
Bolt Center-to-Center Length:6 to 7.13 in
Bore Diameter:1-15/16 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Load Capacity:26300 lb Dynamic/26600 lb Static
Locking Device:Single Concentric Collar
Material:Cast Steel
Maximum Speed:2400 rpm Grease/Oil
Mounting Type:Two-Bolt Base
Overall Height:4.81 in
Overall Length:8.88 in
Overall Width:3.11 in
Seal Type:M Seal
Series:CL Series

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Inch
Shaft Diameter
1 15/16 in
Type
2 Bolt Pillow Block

Customers who bought this item also bought

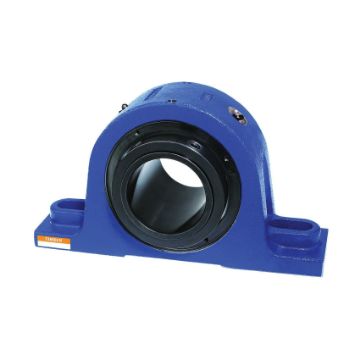

Picture of QAP10A200SM QM
