QAP18A308SC QM

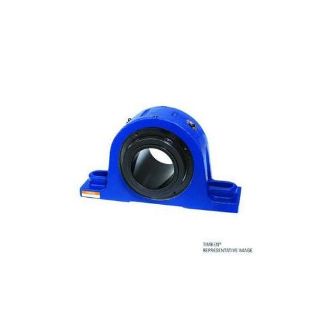

Picture of QAP18A308SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAP18A308SC
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,593.05 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAP18A308SC, Pillow Block, Series: QAP, 3.5 in Bore, 9.38 to 11.25 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 13.5 in Overall Length, 4.3 in Overall Width, 7.69 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 3.41 in Base Width, Single Concentric Collar Locking Device, Fixed Expansion, 355000 N Dynamic/388000 N Static Load, -30 to 400 deg F, 1000 rpm Grease/1000 rpm Oil Maximum, Steel, Painted

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Base to Bore Centerline:3.75 in
Base Width:3.41 in
Bolt Center-to-Center Length:9.38 to 11.25 in
Bore Diameter:3.5 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:355000 N Dynamic/388000 N Static
Locking Device:Single Concentric Collar
Material:Steel
Maximum Speed:1000 rpm Grease/1000 rpm Oil
Mounting Type:2-Bolt
Overall Height:7.69 in
Overall Length:13.5 in
Overall Width:4.3 in
Seal Type:C Seal
Series:QAP
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Inch
Shaft Diameter
3 1/2 in
Type
2 Bolt Pillow Block
