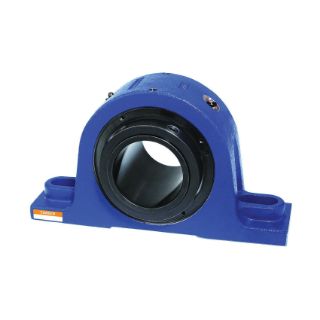

Actual Product May Vary From Image

QAP20A100SM QM

Name: QAP20A100SM QM
Brand: Timken
SKU: QAP20A100SM QM
Availability: OutOfStock

Mounted Spherical Roller Bearing Housed Unit

Manufacturer: Timken

Manufacturer part number: QAP20A100SM

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

Mounted Spherical Roller Bearing Housed Unit | 100 mm 3.9 in Bore | Concentric (set screw) lock, single-collar

Features

Single Collar set-screw locking - CL Series - two set screws positioned at 60 degrees provide maximum positive locking power with minimal run out. M Seal - Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications. It is chemical and corrosion resistant and provides excellent lubrication retention. It also allows excess grease to purge from the bearing cavity.

Specifications

Adapter Sleeve:	No
Bearing Material:	Steel
Bearing Type:	Mounted Roller Bearing
Bolt Size - in:	1
Bolt Size - mm:	24
Bolt Spacing Maximum - Inch:	12.6
Bolt Spacing Maximum - Millimeter:	320
Bolt Spacing Minimum - Inch:	10.04
Bolt Spacing Minimum - Millimeter:	255
Bore Size (ID) - in:	3.937
Bore Size (ID) - mm:	100
Bore Type:	Cylindrical
Cage Retainer Material:	Steel
Component (I/R; O/R assembly):	Assembly
Duty Type:	Heavy Duty
Dynamic Load Rating:	97700
End Type:	Open
Expansion Type:	non-expansion (fixed)
Housing Configuration:	2 Bolt Pillow Block
Housing Material:	Cast Steel
Housing Style:	2 Bolt Pillow Block
Length Through Bore - in:	4.6
Length Through Bore - mm:	116.8
Load Rating UOM:	LBS
Locking Type:	Concentric (set screw) lock, single-collar
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/solid-block-spherical-roller-bearing/
Material - Rolling Elements (Ball or Roller):	Steel
Material Insert Bearing:	Steel
Mounting Type:	Pillow Block: 2 Bolt
Number of Mounting Holes:	2
Outer Diameter Type:	Cylindrical
Overall Height - in:	8.26
Overall Height - mm:	209.8
Overall Length - in:	14.25
Overall Length - mm:	362
Overall Width - in:	4.8400
Overall Width - mm:	122.900
Relubricatable:	Yes
Retainer Type:	Steel
Rolling Element:	Spherical
Row Type:	Double Row
Self Aligning:	Yes
Shaft Centerline - in:	4.13
Shaft Centerline - mm:	104.9
Static Load Rating:	113000
