QAPF15A211SB QM

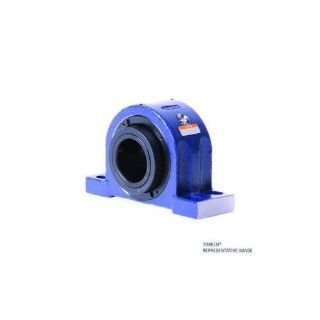

Picture of QAPF15A211SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAPF15A211SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,693.10 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAPF15A211SB, Pillow Block, Series: QAPF, 2.6875 in Bore, 7.6 to 9.1 in Bolt Center-to-Center Length, 3.25 in Base to Bore Centerline, 10.44 in Overall Length, 3.94 in Overall Width, 6.6 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.13 in Base Width, Single Concentric Collar Locking Device, B Seal, Fixed Expansion, 222000 N Dynamic/240000 N Static Load, -50 to 200 deg F, 1300 rpm Grease/1300 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:3.25 in
Base Width:3.13 in
Bolt Center-to-Center Length:7.6 to 9.1 in
Bore Diameter:2.6875 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:222000 N Dynamic/240000 N Static
Locking Device:Single Concentric Collar
Material:Steel
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.6 in
Overall Length:10.44 in
Overall Width:3.94 in
Seal Type:B Seal
Series:QAPF
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Inch
Shaft Diameter
2 11/16 in
Type
4 Bolt Pillow Block
