QAPF20A100ST QM

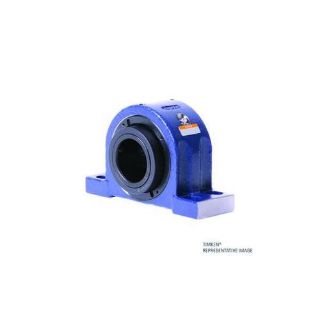

Picture of QAPF20A100ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAPF20A100ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,660.37 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAPF20A100ST, Pillow Block, Series: QAPF, 3.937 in Bore, 10.88 to 13.38 in Bolt Center-to-Center Length, 4.25 in Base to Bore Centerline, 14.88 in Overall Length, 5.13 in Overall Width, 8.78 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.31 in Base Width, Single Concentric Collar Locking Device, T Seal, Fixed Expansion, 435000 N Dynamic/502000 N Static Load, -100 to 500 deg F, 1600 rpm Grease/2000 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:4.25 in
Base Width:4.31 in
Bolt Center-to-Center Length:10.88 to 13.38 in
Bore Diameter:3.937 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Single Concentric Collar
Material:Steel
Maximum Speed:1600 rpm Grease/2000 rpm Oil
Mounting Type:4-Bolt
Overall Height:8.78 in
Overall Length:14.88 in
Overall Width:5.13 in
Seal Type:T Seal
Series:QAPF
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Metric
Shaft Diameter
100 mm
Type
4 Bolt Pillow Block
