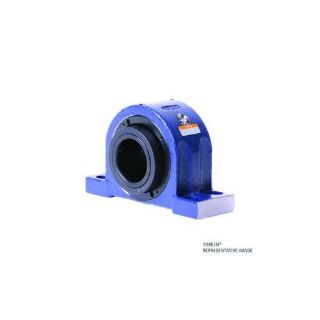

Actual Product May Vary From Image

QAPF20A315SN QM

Name: QAPF20A315SN QM
Brand: Timken
SKU: QAPF20A315SN QM
Availability: OutOfStock

Mounted Spherical Roller Bearing Housed Unit

Manufacturer: Timken

Manufacturer part number: QAPF20A315SN

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

Mounted Spherical Roller Bearing Housed Unit | 100 mm 3.9 in Bore | Concentric (set screw) lock, single-collar

Features

Single Collar set-screw locking - CL Series - two set screws positioned at 60 degrees provide maximum positive locking power with minimal run out. N Seal - Medium-duty contact triple-lip seal, made of Viton. This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber.

Specifications

Adapter Sleeve:	No
Bearing Material:	Steel
Bearing Type:	Mounted Roller Bearing
Bolt Size - in:	0.75
Bolt Size - mm:	20
Bolt Spacing Maximum - Inch:	13.38
Bolt Spacing Maximum - Millimeter:	339.9
Bolt Spacing Minimum - Inch:	10.88
Bolt Spacing Minimum - Millimeter:	276.4
Bore Size (ID) - in:	3.9375
Bore Size (ID) - mm:	100.0125
Bore Type:	Cylindrical
Cage Retainer Material:	Steel
Component (I/R; O/R assembly):	Assembly
Duty Type:	Heavy Duty
End Type:	Open
Expansion Type:	non-expansion (fixed)
Housing Configuration:	4 Bolt Pillow Block
Housing Material:	Cast Steel
Housing Style:	4 Bolt Pillow Block
Length Through Bore - in:	4.59
Length Through Bore - mm:	116.6
Load Rating UOM:	LBS
Locking Type:	Concentric (set screw) lock, single-collar
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/solid-block-spherical-roller-bearing/
Material - Rolling Elements (Ball or Roller):	Steel
Material Insert Bearing:	Steel
Mounting Type:	Pillow Block: 4 Bolt
Number of Mounting Holes:	4
Outer Diameter Type:	Cylindrical
Overall Height - in:	8.78
Overall Height - mm:	223
Overall Length - in:	14.88
Overall Length - mm:	378
Overall Width - in:	5.13
Overall Width - mm:	130.3
Relubricatable:	Yes
Retainer Type:	Steel
Rolling Element:	Spherical
Row Type:	Double Row
Self Aligning:	Yes
Shaft Centerline - in:	4.25
Shaft Centerline - mm:	108
