QATU11A203SEM QM

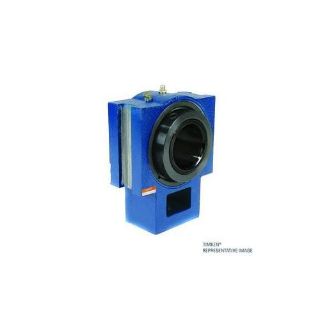

Picture of QATU11A203SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QATU11A203SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,024.67 / EA

Description

Brand Name

Timken®

Type

Single Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QATU11A203SEM, Take-Up Block, Single Concentric, Series: QATU, 2-3/16 in Bore, 6.61 in Length, 3.22 in Width, 5.25 in Height, 140000 N Dynamic/142000 N Static Load, Steel Bearing, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bore Diameter:2-3/16 in
Finish:Painted
Height:5.25 in
Length:6.61 in
Load Capacity:140000 N Dynamic/142000 N Static
Series:QATU
Temperature Rating:-50 to 200 deg F
Width:3.22 in

Products Specifications

Brand Name
Timken
Shaft Diameter
2 3/16 in
