QATU15A300SC QM

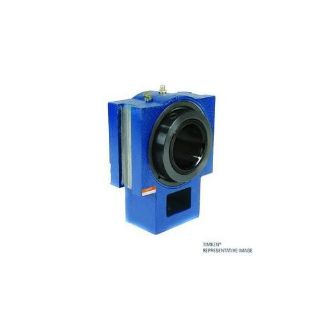

Picture of QATU15A300SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QATU15A300SC
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,923.94 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Eccentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QATU15A300SC, Piloted Flange Cartridge, Eccentric, Series: QATU, 3 in Bore, 8.65 in Length, 3.82 in Width, 6.75 in Height, 222000 N Dynamic/240000 N Static Load, Steel Bearing, -30 to 400 deg F, Painted

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Bearing Material:Steel
Bore Diameter:3 in
Finish:Painted
Height:6.75 in
Length:8.65 in
Load Capacity:222000 N Dynamic/240000 N Static
Series:QATU
Temperature Rating:-30 to 400 deg F
Width:3.82 in

Products Specifications

Brand Name
Timken
Shaft Diameter
3 in
