QATU18A308SET QM

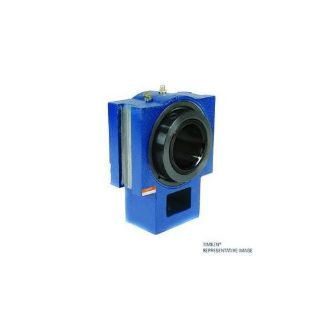

Picture of QATU18A308SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QATU18A308SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,625.51 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Eccentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QATU18A308SET, Piloted Flange Cartridge, Eccentric, Series: QATU, 3-1/2 in Bore, 10.12 in Length, 4.22 in Width, 7.63 in Height, 355000 N Dynamic/388000 N Static Load, Steel Bearing, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bore Diameter:3-1/2 in
Finish:Painted
Height:7.63 in
Length:10.12 in
Load Capacity:355000 N Dynamic/388000 N Static
Series:QATU
Temperature Rating:-100 to 500 deg F
Width:4.22 in

Products Specifications

Brand Name
Timken
Shaft Diameter
3 1/2 in
