QMCW22J407SEM QM

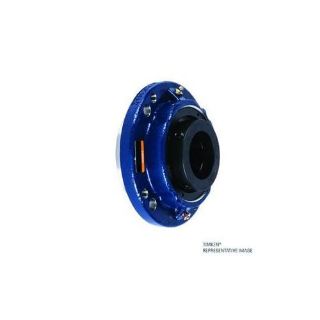

Picture of QMCW22J407SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMCW22J407SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6,532.89 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMCW22J407SEM, Piloted Flange Cartridge, Series: QMCW, 4.4375 in Bore, 5.88 in Bolt Center-to-Center Length, 11.75 in Diameter Bolt Circle, Piloted Flange Mounting, 13.5 in Overall Length/Diameter, 5.7 in Overall Depth, Eccentric Lock Locking Device, Steel Bearing, Nitrile Rubber Seal, 555000 N Dynamic/653000 N Static Load, 900 rpm Grease/900 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.88 in
Bolt Circle Diameter:11.75 in
Bore Diameter:4.4375 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:555000 N Dynamic/653000 N Static
Locking Device:Eccentric Lock
Maximum Speed:900 rpm Grease/900 rpm Oil
Overall Depth:5.7 in
Overall Length/Diameter:13.5 in
Seal Material:Nitrile Rubber
Series:QMCW
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
