QMCW34J608SB QM

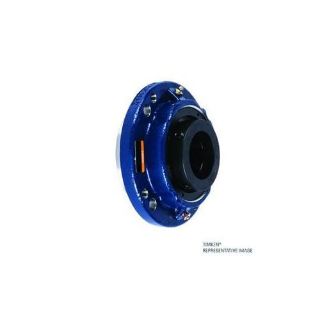

Picture of QMCW34J608SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMCW34J608SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$24,943.05 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMCW34J608SB, Piloted Flange Cartridge, Series: QMCW, 6.5 in Bore, 8.5 in Bolt Center-to-Center Length, 17 in Diameter Bolt Circle, Piloted Flange Mounting, 19 in Overall Length/Diameter, 8.51 in Overall Depth, Eccentric Lock Locking Device, Steel Bearing, Nitrile Rubber Seal, 1660000 N Dynamic/2200000 N Static Load, 350 rpm Grease/350 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:8.5 in
Bolt Circle Diameter:17 in
Bore Diameter:6.5 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:1660000 N Dynamic/2200000 N Static
Locking Device:Eccentric Lock
Maximum Speed:350 rpm Grease/350 rpm Oil
Overall Depth:8.51 in
Overall Length/Diameter:19 in
Seal Material:Nitrile Rubber
Series:QMCW
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
