QMF09J111SC QM

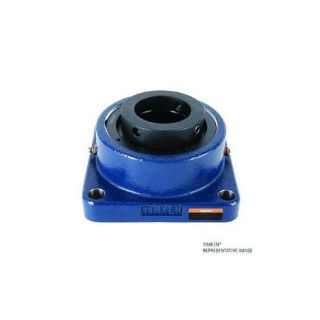

Picture of QMF09J111SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMF09J111SC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$905.63 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMF09J111SC, Square Flange Block, Series: QMF, 1.6875 in Bore, 4.13 in Bolt Center-to-Center Length, 5.84 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.38 in Overall Length/Diameter, 3.13 in Overall Depth, 5.38 in Overall Height, Eccentric Locking Device, Steel Bearing, Viton Seal, 109000 N Dynamic/108000 N Static Load, 1950 rpm Grease/1950 rpm Oil Maximum, -30 to 400 deg F, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.13 in
Bolt Circle Diameter:5.84 in
Bore Diameter:1.6875 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:109000 N Dynamic/108000 N Static
Locking Device:Eccentric
Maximum Speed:1950 rpm Grease/1950 rpm Oil
Overall Depth:3.13 in
Overall Height:5.38 in
Overall Length/Diameter:5.38 in
Seal Material:Viton
Series:QMF
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 11/16 in
