QMF13J207SO QM

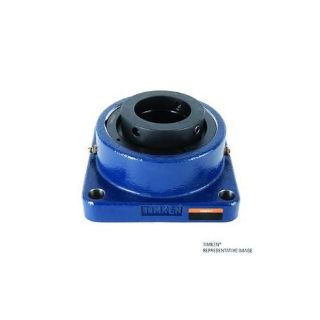

Picture of QMF13J207SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMF13J207SO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,121.46 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMF13J207SO, Square Flange Block, Series: QMF, 2.4375 in Bore, 5.38 in Bolt Center-to-Center Length, 7.6 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 6.63 in Overall Length/Diameter, 3.57 in Overall Depth, 6.63 in Overall Height, Eccentric Locking Device, Steel Bearing, Polyurethane Seal, 206000 N Dynamic/216000 N Static Load, 1500 rpm Grease/1500 rpm Oil Maximum, -40 to 260 deg F, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.38 in
Bolt Circle Diameter:7.6 in
Bore Diameter:2.4375 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:206000 N Dynamic/216000 N Static
Locking Device:Eccentric
Maximum Speed:1500 rpm Grease/1500 rpm Oil
Overall Depth:3.57 in
Overall Height:6.63 in
Overall Length/Diameter:6.63 in
Seal Material:Polyurethane
Series:QMF
Temperature Rating:-40 to 260 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 7/16 in
