QMF20J100SB QM

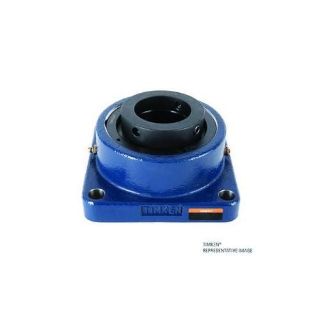

Picture of QMF20J100SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMF20J100SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,707.47 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMF20J100SB, Square Flange Block, Series: QMF, 3.937 in Bore, 7.75 in Bolt Center-to-Center Length, 10.96 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 9.97 in Overall Length/Diameter, 4.97 in Overall Depth, 9.97 in Overall Height, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 435000 N Dynamic/502000 N Static Load, 900 rpm Grease/900 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:7.75 in
Bolt Circle Diameter:10.96 in
Bore Diameter:3.937 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Eccentric
Maximum Speed:900 rpm Grease/900 rpm Oil
Overall Depth:4.97 in
Overall Height:9.97 in
Overall Length/Diameter:9.97 in
Seal Material:Nitrile Rubber
Series:QMF
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
100 mm
