QMFL09J040SN QM

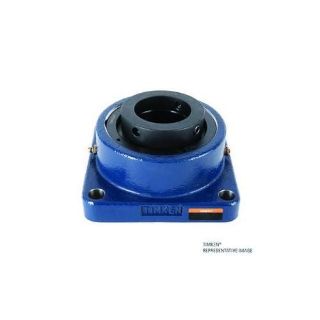

Picture of QMFL09J040SN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFL09J040SN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$871.32 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMFL09J040SN, Square Flange Block, Series: QMFL, 1.5748 in Bore, 3.89 in Bolt Center-to-Center Length, 5.5 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.38 in Overall Length/Diameter, 3.13 in Overall Depth, 5.38 in Overall Height, Eccentric Locking Device, Steel Bearing, Viton Seal, 109000 N Dynamic/108000 N Static Load, 2700 rpm Grease/2700 rpm Oil Maximum, -30 to 400 deg F, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3.89 in
Bolt Circle Diameter:5.5 in
Bore Diameter:1.5748 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:109000 N Dynamic/108000 N Static
Locking Device:Eccentric
Maximum Speed:2700 rpm Grease/2700 rpm Oil
Overall Depth:3.13 in
Overall Height:5.38 in
Overall Length/Diameter:5.38 in
Seal Material:Viton
Series:QMFL
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
40 mm
