QMFL10J115SC QM

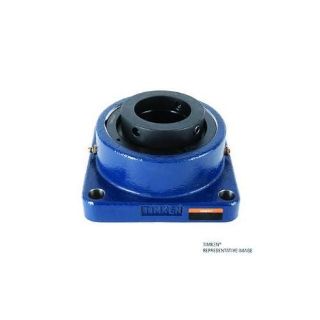

Picture of QMFL10J115SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFL10J115SC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$962.62 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMFL10J115SC, Square Flange Block, Series: QMFL, 1.9375 in Bore, 4.07 in Bolt Center-to-Center Length, 5.75 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.19 in Overall Length/Diameter, 3.18 in Overall Depth, 5.19 in Overall Height, Eccentric Locking Device, Steel Bearing, Viton Seal, 117000 N Dynamic/118000 N Static Load, 1800 rpm Grease/1800 rpm Oil Maximum, -30 to 400 deg F, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.07 in
Bolt Circle Diameter:5.75 in
Bore Diameter:1.9375 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:117000 N Dynamic/118000 N Static
Locking Device:Eccentric
Maximum Speed:1800 rpm Grease/1800 rpm Oil
Overall Depth:3.18 in
Overall Height:5.19 in
Overall Length/Diameter:5.19 in
Seal Material:Viton
Series:QMFL
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 15/16 in
