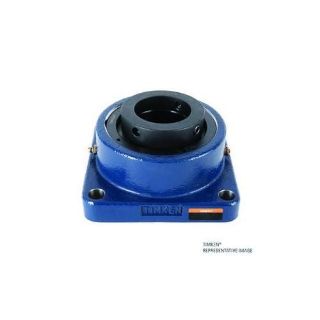

Picture of QMFL13J208SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFL13J208SET
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,109.47 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMFL13J208SET, Square Flange Block, Series: QMFL, 2.5 in Bore, 4.77 in Bolt Center-to-Center Length, 6.75 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 6.19 in Overall Length/Diameter, 3.5 in Overall Depth, 6.19 in Overall Height, Eccentric Locking Device, Steel Bearing, Teflon Seal, 206000 N Dynamic/216000 N Static Load, 2800 rpm Grease/3200 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.77 in
Bolt Circle Diameter:6.75 in
Bore Diameter:2.5 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:206000 N Dynamic/216000 N Static
Locking Device:Eccentric
Maximum Speed:2800 rpm Grease/3200 rpm Oil
Overall Depth:3.5 in
Overall Height:6.19 in
Overall Length/Diameter:6.19 in
Seal Material:Teflon
Series:QMFL
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 1/2 in
