QMFX15J300SB QM

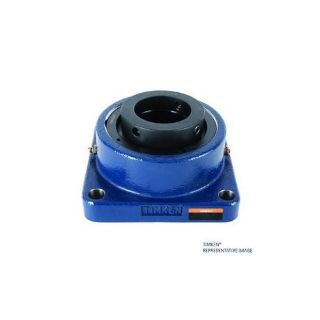

Picture of QMFX15J300SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFX15J300SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,656.37 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMFX15J300SB, Square Flange Block, Series: QMFX, 3 in Bore, 6.01 in Bolt Center-to-Center Length, 8.5 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.44 in Overall Length/Diameter, 3.78 in Overall Depth, 7.44 in Overall Height, Eccentric Lock Locking Device, Steel Bearing, Nitrile Rubber Seal, 222000 N Dynamic/240000 N Static Load, 1300 rpm Grease/1300 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.01 in
Bolt Circle Diameter:8.5 in
Bore Diameter:3 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:222000 N Dynamic/240000 N Static
Locking Device:Eccentric Lock
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Overall Depth:3.78 in
Overall Height:7.44 in
Overall Length/Diameter:7.44 in
Seal Material:Nitrile Rubber
Series:QMFX
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3 in
