QMFY10J200SEM QM

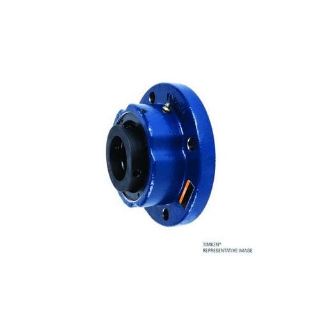

Picture of QMFY10J200SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFY10J200SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$875.14 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMFY10J200SEM, Round Flange Block, Series: QMFY, 2 in Bore, 4.07 in Bolt Center-to-Center Length, 5.75 in Diameter Bolt Circle, Round Flange Flange Mounting, 7 in Overall Length/Diameter, 2.99 in Overall Depth, 7 in Overall Height, Eccentric Lock Locking Device, Steel Bearing, Nitrile Rubber Seal, 117000 N Dynamic/118000 N Static Load, 2400 rpm Grease/2400 rpm Oil Maximum, -50 to 200 deg F

Application

Offers superior sealing in moist and dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.07 in
Bolt Circle Diameter:5.75 in
Bore Diameter:2 in
Flange Mounting Type:Round Flange
Load Capacity:117000 N Dynamic/118000 N Static
Locking Device:Eccentric Lock
Maximum Speed:2400 rpm Grease/2400 rpm Oil
Overall Depth:2.99 in
Overall Height:7 in
Overall Length/Diameter:7 in
Seal Material:Nitrile Rubber
Series:QMFY
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 in
