QMFY15J215SEC QM

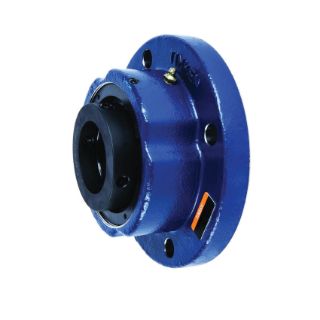

Picture of QMFY15J215SEC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMFY15J215SEC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,857.71 / EA

Description

Brand Name

Timken®

Type

Expansion C Seal Solid Block

Description

The reduced eccentric offset of our EC series locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft. EC series housed units also are suitable for reversing applications.
Timken®, QMFY15J215SEC, Spherical Roller Bearing Housed Unit, Expansion C Seal Solid Block, Series: EC Series, 2-15/16 in Bore, 5.56 in Bolt Center-to-Center Length, 7.87 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 9-1/2 in Overall Length/Diameter, 3.96 in Overall Depth, 9-1/2 in Overall Height, Eccentric Locking Device, Cast Steel Seal, 49900 lb Dynamic/54100 lb Static Load, 1300 rpm Grease/1300 rpm Oil Maximum

Application

For use with 2-15/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.56 in
Bolt Circle Diameter:7.87 in
Bore Diameter:2-15/16 in
Flange Mounting Type:4-Bolt Round
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Eccentric
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Overall Depth:3.96 in
Overall Height:9-1/2 in
Overall Length/Diameter:9-1/2 in
Seal Material:Cast Steel
Series:EC Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
