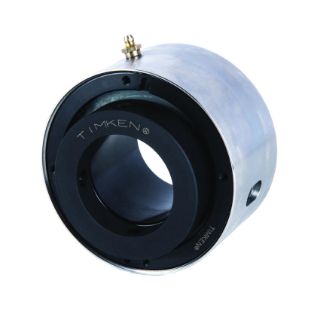

QMMC13J207ST QM

Name: QMMC13J207ST QM
Brand: Timken
SKU: QMMC13J207ST QM
Price: 1,185.01 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

QMMC13J207ST

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,185.01 / EA

Description

Brand Name

Timken®

Type

Cylindrical Bore Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, QMMC13J207ST, Spherical Roller Bearing Cartridge Block, Cylindrical Bore Non-Expansion, Series: QMMC, 2-7/16 in Bore, 5 in OD, 3.37 in Width, 46400 lb Dynamic/48600 lb Static Load, Steel Bearing, PTFE Seal, 2800 rpm Grease/3200 rpm Oil Maximum, 32 to 104 deg F, Powder Coated

Application

Aggregate and Cement, Agriculture, Material Conveying, Metal Mills, Mining, Power Generation Industries

Standards

ABMA/ANSI Standard

Features

Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
Suitable for reversing applications
Double row, heavy duty and open end
Cast steel housing
22213 bearing insert bore series

Specifications

Bearing Material:	Steel
Bore Diameter:	2-7/16 in
Finish:	Powder Coated
Load Capacity:	46400 lb Dynamic/48600 lb Static
Maximum Speed:	2800 rpm Grease/3200 rpm Oil
Outside Diameter:	5 in
Seal Material:	PTFE
Series:	QMMC
Temperature Rating:	32 to 104 deg F
Width:	3.37 in
