QMMC15J070SM QM

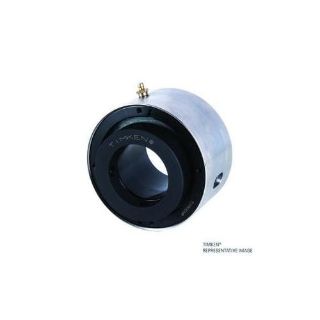

Picture of QMMC15J070SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMMC15J070SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,797.04 / EA

Description

Brand Name

Timken®

Type

Eccentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMMC15J070SM, Cartridge Block, Eccentric, Series: QMMC, 2.76 in Bore, 5.875 in OD, 3.94 in Width, 222000 N Dynamic/240000 N Static Load, Steel Bearing, Nitrile Rubber Seal, 1600 rpm Grease/1600 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bore Diameter:2.76 in
Finish:Painted
Load Capacity:222000 N Dynamic/240000 N Static
Maximum Speed:1600 rpm Grease/1600 rpm Oil
Outside Diameter:5.875 in
Seal Material:Nitrile Rubber
Series:QMMC
Temperature Rating:-50 to 200 deg F
Width:3.94 in

Products Specifications

Brand Name
Timken
Shaft Diameter
70 mm
