QMP09J045SB QM

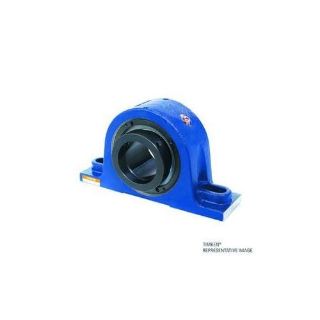

Picture of QMP09J045SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMP09J045SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$720.54 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMP09J045SB, Pillow Block, Series: QMP, 1.7717 in Bore, 6.25 to 7.12 in Bolt Center-to-Center Length, 2.25 in Base to Bore Centerline, 8.88 in Overall Length, 3.1 in Overall Width, 4.25 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.44 in Base Width, Eccentric Locking Device, B Seal, Fixed Expansion, 109000 N Dynamic/108000 N Static Load, -50 to 200 deg F, 1950 rpm Grease/1950 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:2.25 in
Base Width:2.44 in
Bolt Center-to-Center Length:6.25 to 7.12 in
Bore Diameter:1.7717 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:109000 N Dynamic/108000 N Static
Locking Device:Eccentric
Material:Steel
Maximum Speed:1950 rpm Grease/1950 rpm Oil
Mounting Type:2-Bolt
Overall Height:4.25 in
Overall Length:8.88 in
Overall Width:3.1 in
Seal Type:B Seal
Series:QMP
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Metric
Shaft Diameter
45 mm
Type
2 Bolt Pillow Block
