QMP09J112SO QM

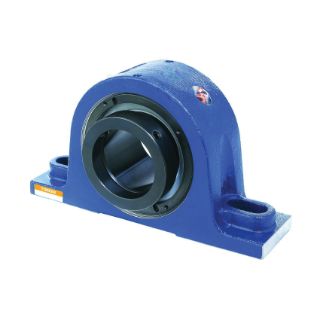

Picture of QMP09J112SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMP09J112SO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$756.58 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Solid Block Type E

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMP09J112SO, Pillow Block Spherical Roller Bearing Unit, 1-3/4 in Bore, 6.25 to 7.12 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8.88 in Overall Length, 3.1 in Overall Width, 4-1/4 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.44 in Base Width, Eccentric Locking Device, Triple Lip O Seal, Non-Expansion (Fixed), 24500 lb Dynamic/24200 lb Static Load, 1950 rpm Maximum, Cast Steel, Powder Coated

Application

Metal Mills, Aggregate, Cement, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Sawmills and Other Forest Process Industries

Features

  • Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
  • Suitable for reversing applications
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Bearing steel
  • Open end type
  • Double row bearing
  • 22209 bearing insert bore series
  • Increased shaft holding power
  • Reduced shaft damage under extreme shock loads
  • Designed not to release in reversing applications

Specifications

Base to Bore Centerline:2-1/4 in
Base Width:2.44 in
Bolt Center-to-Center Length:6.25 to 7.12 in
Bore Diameter:1-3/4 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:24500 lb Dynamic/24200 lb Static
Locking Device:Eccentric
Material:Cast Steel
Maximum Speed:1950 rpm
Mounting Type:Two-Bolt Base
Overall Height:4-1/4 in
Overall Length:8.88 in
Overall Width:3.1 in
Seal Type:Triple Lip O

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
1 3/4 in
Type
2 Bolt Pillow Block
