QMPF18J307SEB QM

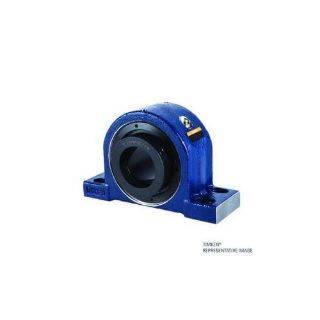

Picture of QMPF18J307SEB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPF18J307SEB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,654.32 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPF18J307SEB, Pillow Block, Series: QMPF, 3.4375 in Bore, 8.88 to 10.88 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 12.3 in Overall Length, 4.46 in Overall Width, 7.69 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.75 in Base Width, Eccentric Locking Device, B Seal, Expansion, 355000 N Dynamic/388000 N Static Load, -50 to 200 deg F, 1000 rpm Grease/1000 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:3.75 in
Base Width:3.75 in
Bolt Center-to-Center Length:8.88 to 10.88 in
Bore Diameter:3.4375 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:355000 N Dynamic/388000 N Static
Locking Device:Eccentric
Material:Steel
Maximum Speed:1000 rpm Grease/1000 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.69 in
Overall Length:12.3 in
Overall Width:4.46 in
Seal Type:B Seal
Series:QMPF
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
3 7/16 in
Type
4 Bolt Pillow Block
