QMPL11J204SEM QM

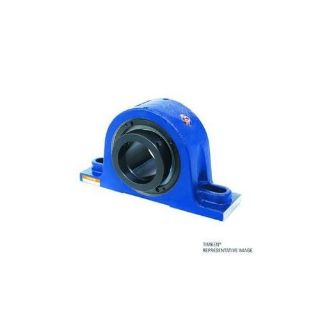

Picture of QMPL11J204SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPL11J204SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$965.38 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPL11J204SEM, Pillow Block, Series: QMPL, 2.25 in Bore, 6.5 to 7.06 in Bolt Center-to-Center Length, 2.5 in Base to Bore Centerline, 8.88 in Overall Length, 3.28 in Overall Width, 5.25 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.58 in Base Width, Eccentric Lock Locking Device, M Seal, Expansion, 31400 lb Dynamic/31900 lb Static Load, -50 to 200 deg F, 2200 rpm Grease/2200 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:2.5 in
Base Width:2.58 in
Bolt Center-to-Center Length:6.5 to 7.06 in
Bore Diameter:2.25 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:31400 lb Dynamic/31900 lb Static
Locking Device:Eccentric Lock
Material:Steel
Maximum Speed:2200 rpm Grease/2200 rpm Oil
Mounting Type:2-Bolt
Overall Height:5.25 in
Overall Length:8.88 in
Overall Width:3.28 in
Seal Type:M Seal
Series:QMPL
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
2 1/4 in
Type
2 Bolt Pillow Block
