QMPL13J207SEN QM

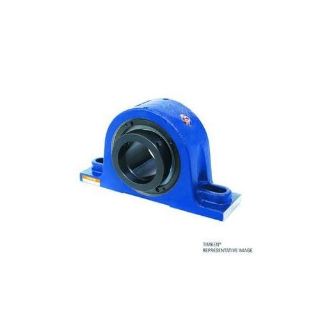

Picture of QMPL13J207SEN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPL13J207SEN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,184.42 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPL13J207SEN, Pillow Block, Series: QMPL, 2.4375 in Bore, 6.81 to 7.44 in Bolt Center-to-Center Length, 2.75 in Base to Bore Centerline, 9.25 in Overall Length, 3.58 in Overall Width, 5.8 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.9 in Base Width, Eccentric Lock Locking Device, N Seal, Expansion, 46400 lb Dynamic/48600 lb Static Load, -30 to 400 deg F, 1800 rpm Grease/1800 rpm Oil Maximum, Steel, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Base to Bore Centerline:2.75 in
Base Width:2.9 in
Bolt Center-to-Center Length:6.81 to 7.44 in
Bore Diameter:2.4375 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:46400 lb Dynamic/48600 lb Static
Locking Device:Eccentric Lock
Material:Steel
Maximum Speed:1800 rpm Grease/1800 rpm Oil
Mounting Type:2-Bolt
Overall Height:5.8 in
Overall Length:9.25 in
Overall Width:3.58 in
Seal Type:N Seal
Series:QMPL
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
2 7/16 in
Type
2 Bolt Pillow Block
