QMPL15J300SC QM

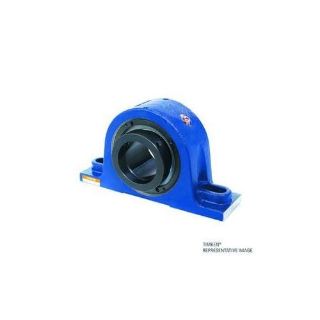

Picture of QMPL15J300SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPL15J300SC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,806.30 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPL15J300SC, Pillow Block, Series: QMPL, 3 in Bore, 7.70 to 8.40 in Bolt Center-to-Center Length, 3.25 in Base to Bore Centerline, 10.44 in Overall Length, 3.87 in Overall Width, 6.59 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 3 in Base Width, Eccentric Lock Locking Device, Non-Expansion (Fixed), 49900 lb Dynamic/54100 lb Static Load, -30 to 400 deg F, 1300 rpm Grease/1300 rpm Oil Maximum, Steel, Painted

Application

Provides a secure lock that should not release from a properly prepared shaft even in reversing applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Base to Bore Centerline:3.25 in
Base Width:3 in
Bolt Center-to-Center Length:7.70 to 8.40 in
Bore Diameter:3 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Eccentric Lock
Material:Steel
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Mounting Type:2-Bolt
Overall Height:6.59 in
Overall Length:10.44 in
Overall Width:3.87 in
Seal Type:C Seal
Series:QMPL
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
3 in
Type
2 Bolt Pillow Block
