QMPR15J215SET QM

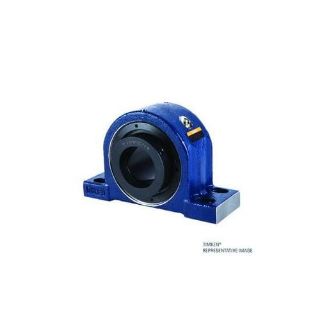

Picture of QMPR15J215SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPR15J215SET
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,735.94 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPR15J215SET, Pillow Block, Series: QMPR, 2.9375 in Bore, 8 to 9.6 in Bolt Center-to-Center Length, 3.13 in Base to Bore Centerline, 10.83 in Overall Length, 4.06 in Overall Width, 6.47 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.38 in Base Width, Eccentric Lock Locking Device, T Seal, Expansion, 49900 lb Dynamic/54100 lb Static Load, -100 to 500 deg F, 2400 rpm Grease/2900 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:3.13 in
Base Width:3.38 in
Bolt Center-to-Center Length:8 to 9.6 in
Bore Diameter:2.9375 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Eccentric Lock
Material:Steel
Maximum Speed:2400 rpm Grease/2900 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.47 in
Overall Length:10.83 in
Overall Width:4.06 in
Seal Type:T Seal
Series:QMPR
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
2 15/16 in
Type
4 Bolt Pillow Block
